UB1 Universal BulkheadTM

Finally, there's a divider unit that will fit multiple trailer heights and widths. We designed the UB1 Universal Bulkhead to be light weight and simple to use. Most of all, it eliminates sizing hassles associated with conventional models. The Universal feature allows you to move the unit from one truck to the other as needed, therefore cutting down cost. Because our product is versatile, it is a great option for quick bulkhead replacement when needed.

IDEAL FOR:  Fleets with multiple trailer heights and width variances

FEATURES:
  • The UB1 Universal Bulkhead fits virtually every trailer dimension, EVEN OLDER, BOWED TRAILERS.
  • No trailer measurements are needed when ordering.
  • The adjustable SPRING TOP material reaches from 97" to 106" in height - tall top or 89" to 98" in height - short top.
  • Hook & Loop Straps provide 10" adjustment in the width to a maximum of 99".
  • The 2" vinyl laminated 5mm corrugated plastic has an open cell foam core.
  • Our panel has the ability to bend and flex when hit, unlike other rigid core designs on the market.
  • With the two-piece design, you can replace just one side if there's damage instead of the entire unit.
  • It's easy to repair.

Thumbs Up iconThe core is guaranteed against vinyl delamination for 10 Years from the date of delivery.

Thumbs Up iconIt has Superior Insulating Efficiency.

Thumbs Up iconIts Flush Mounted Hardware prevents product damage.

Thumbs Up iconIt includes a 5 Year Warranty against wear on all 60 MIL UHMW Scuff Plates.

Thumbs Up iconOur products are not only glued, but also heat sealed at the edges for watertight seal and strength to resist moisture.

Thumbs Up iconHeavy Duty Reinforced Web Handles.



Thermal image shows good seal and temperature consistency around the Universal Bulkhead.

The Thermal Image of the Universal Bulkhead shows that a good seal is achieved around the perimeter.

The only loss of cold air was due to the Thermal Conductivity of the aluminum floor.

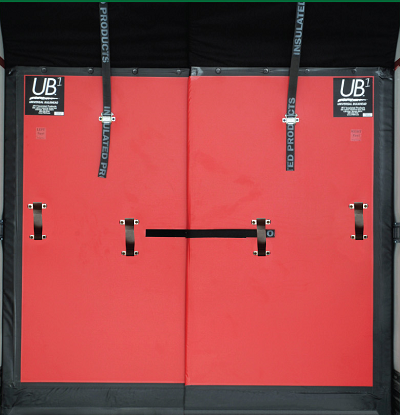

Two-piece model mounted inside a semi trailer.  Replacement of one half is possible.
Universal Bulkhead with Patented Spring Top

Bulkhead panels connect with Velcro Straps
Panels connect with Hook & Loop Straps

Flexible Bulkhead top for height adjustment

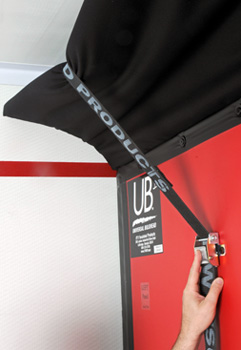

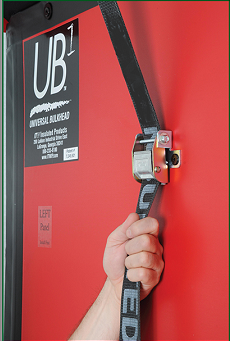

Patented Spring Top being adjusted by user

Strong but easy to release buckle
